Automotive Dual-Bit Dual-Supply Bus Transceiver With Configurable Voltage Translation, 74LVC2T45Q P2P SN74LVC2T45-Q1.
74LVC2T45Q.pdf優勢替代
FEATURES
? AEC-Q100 qualified for automotive applications
? Fully configurable dual-rail design allows each port to
operate over the full 1.65V to 5.5V power-supply range
? VCC isolation feature – if either VCC input is at
GND, both ports are in the high-impedance state
? DIR input circuit referenced to VCCA
? Low power consumption, 10μA maximum ICC
? ±24mA output drive at 3.3V
? Ioff supports Partial-Power-Down mode operation
? Maximum data rates:
– 420Mbps (3.3V to 5V translation)
– 210Mbps (translate to 3.3V)
– 140Mbps (translate to 2.5V)
– 75Mbps (translate to 1.8V)

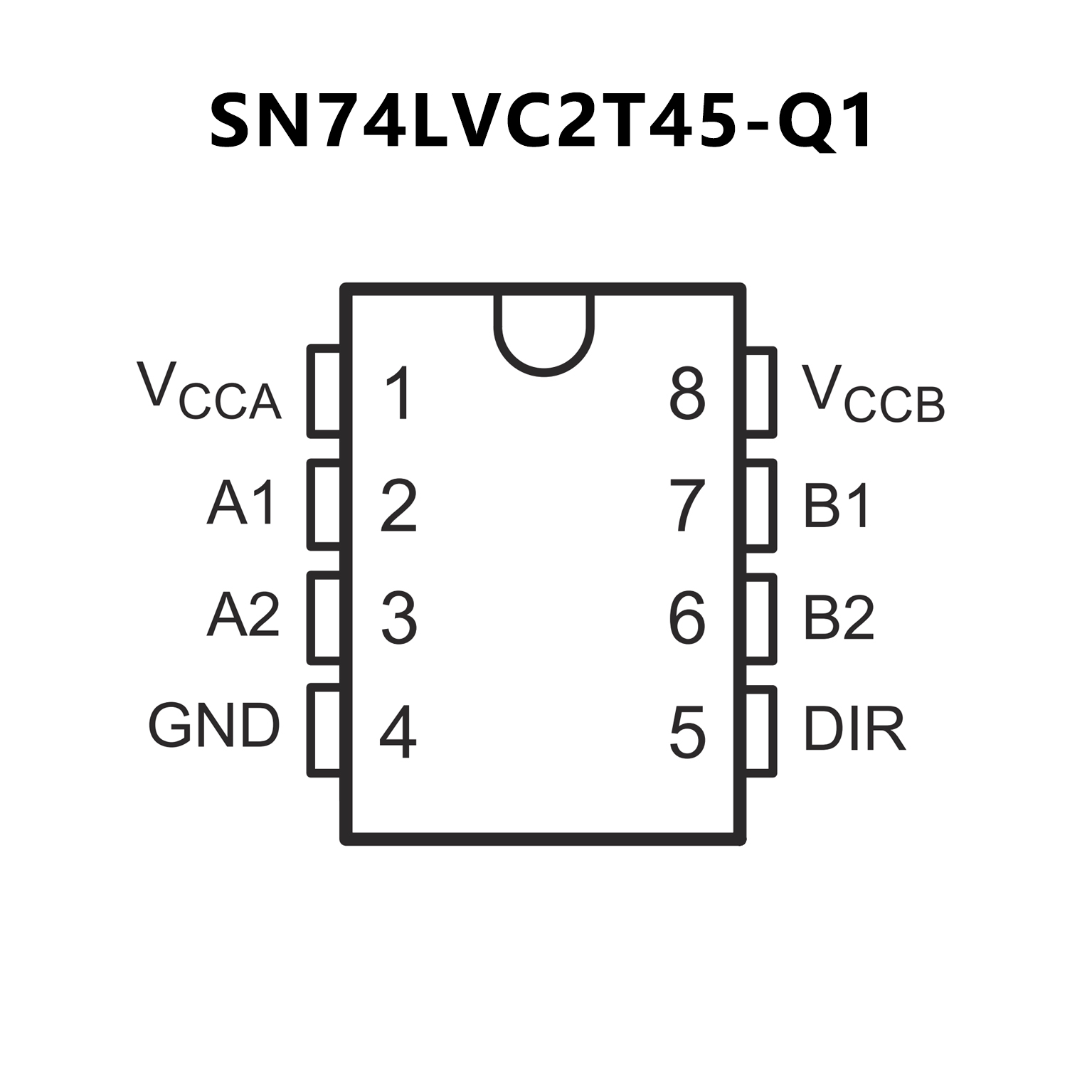

PIN CONFIGUTION
