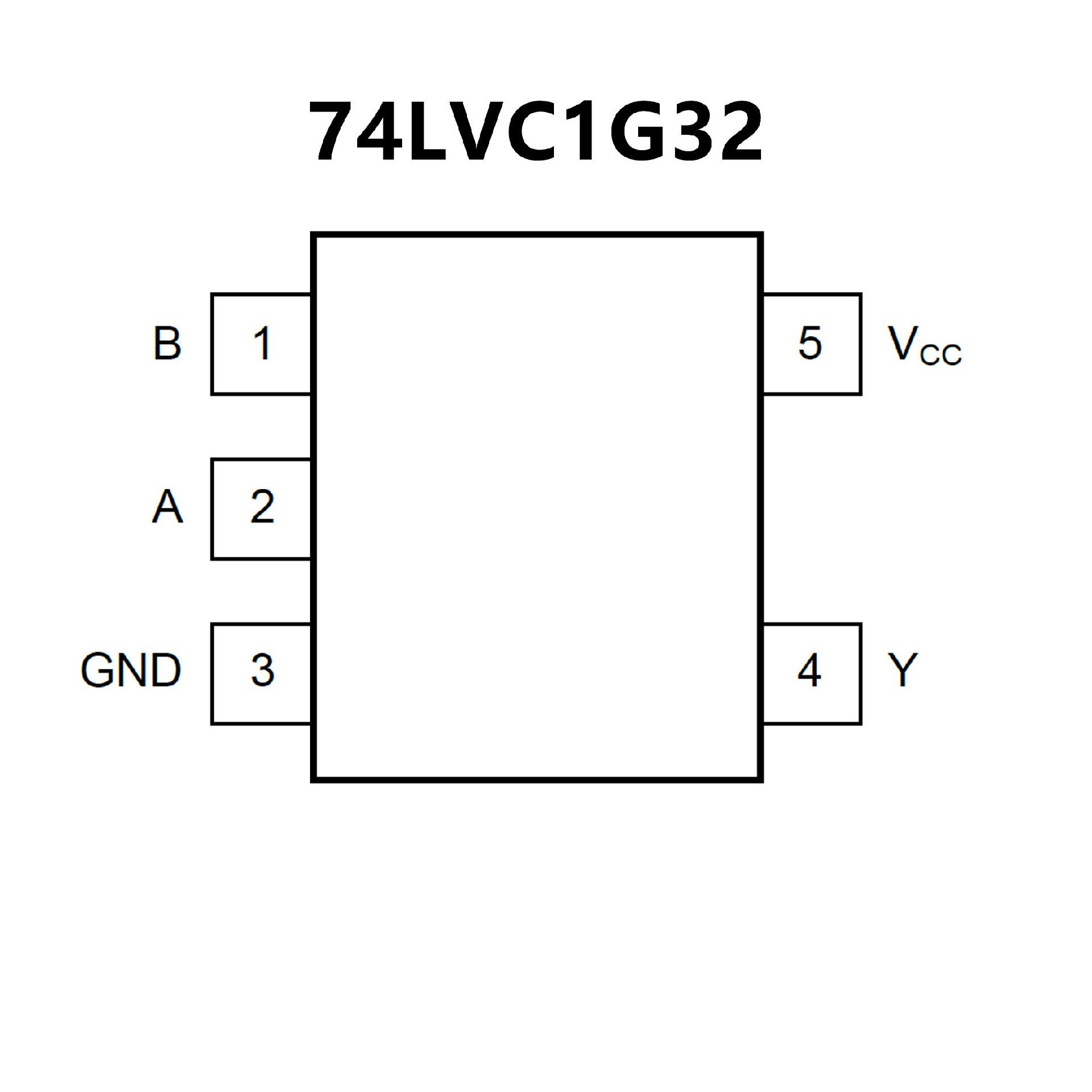

74LVC1G32.pdf? Wide Supply Voltage Range: 1.65V to 5.5V
? High Noise Immunity
? ±24mA Output Drive at VCC = 3.0V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package

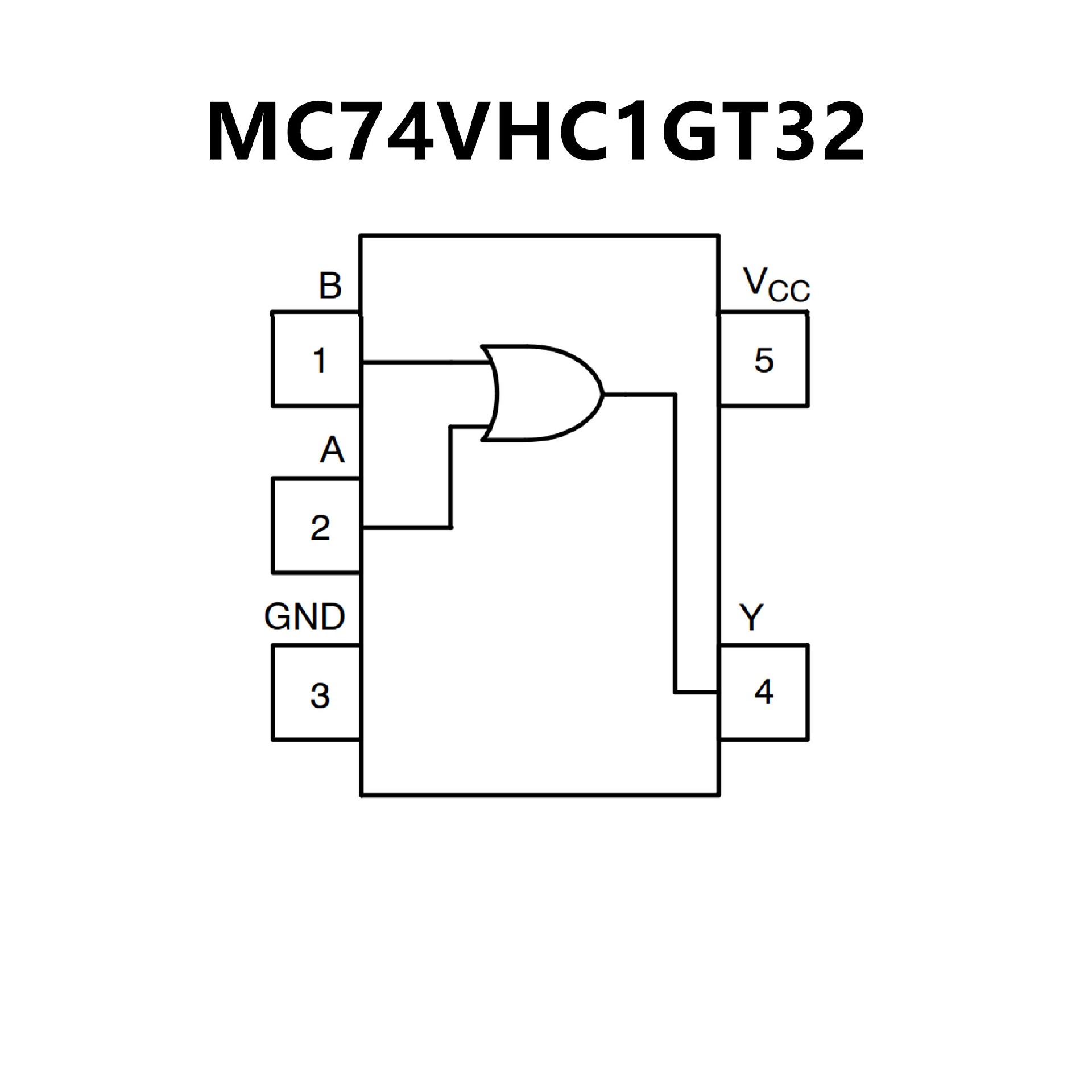

? Designed for 2.0 V to 5.5 V VCC Operation
? 3.7 ns tPD at 5 V (typ)
? Inputs/Outputs Over?Voltage Tolerant up to 5.5 V
? IOFF Supports Partial Power Down Protection
? Source/Sink 8 mA at 3.0 V
? Available in SC?88A, SC?74A, TSOP?5,
SOT?953 and UDFN6 Packages
? Chip Complexity < 100 FETs
? NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements;
AEC?Q100 Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen Free/BFR
Free and are RoHS Compliant
