Single 2-Input NAND Gate,74LVC1G00 Replace MC74VHC1G00.
74LVC1G00
74LVC1G00.pdf
74LVC1G00.pdfFEATURES
? Wide Supply Voltage Range: 1.65V to 5.5V
? High Noise Immunity
? ±24mA Output Drive at VCC = 3.0V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package

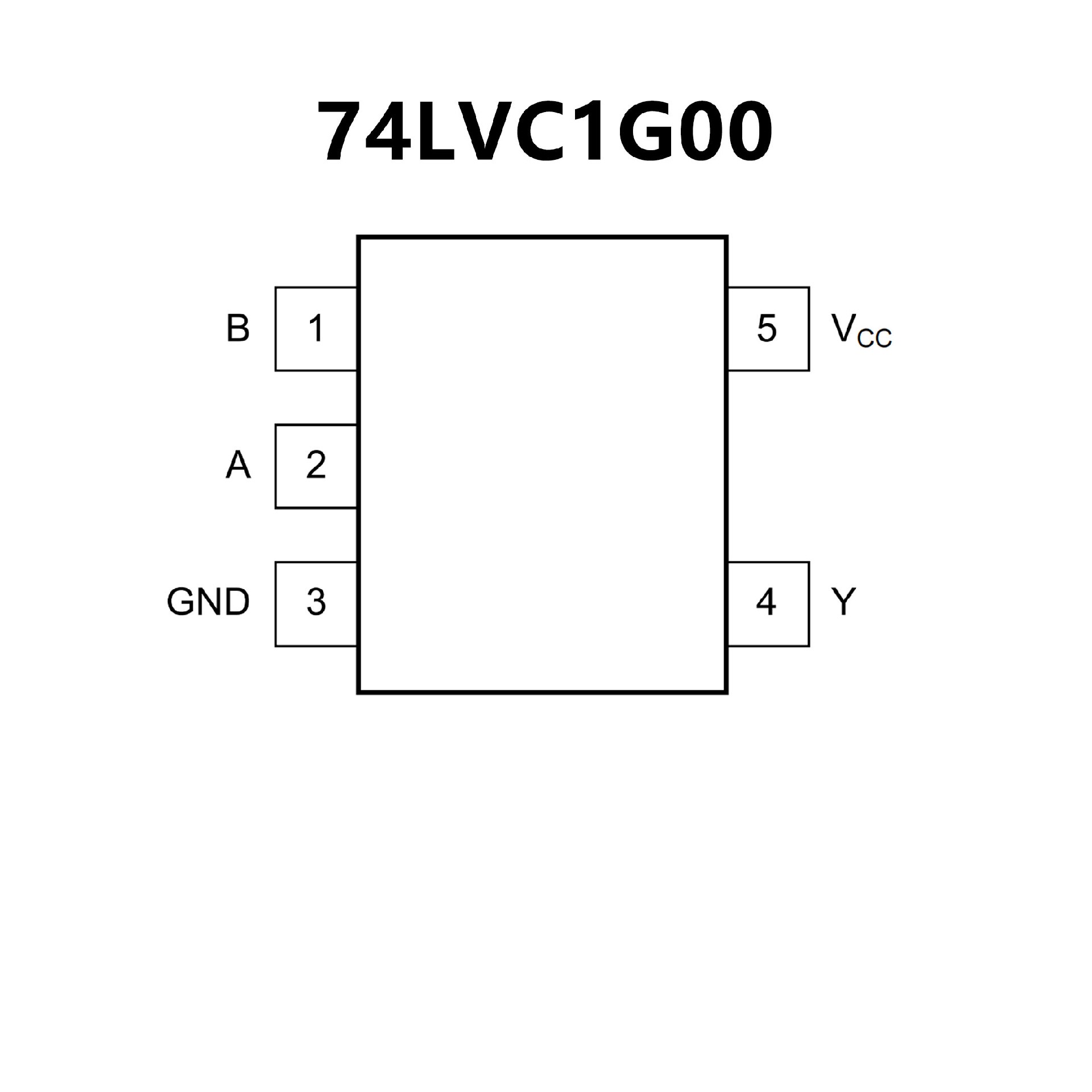

PIN CONFIGUTION
優勢替代
FEATURES
? High Speed: tPD = 3.0 ns (Typ) at VCC = 5 V
? Low Power Dissipation: ICC = 2 mA (Max) at TA = 25°C
? Power Down Protection Provided on Inputs
? Balanced Propagation Delays
? Pin and Function Compatible with Other
Standard Logic Families

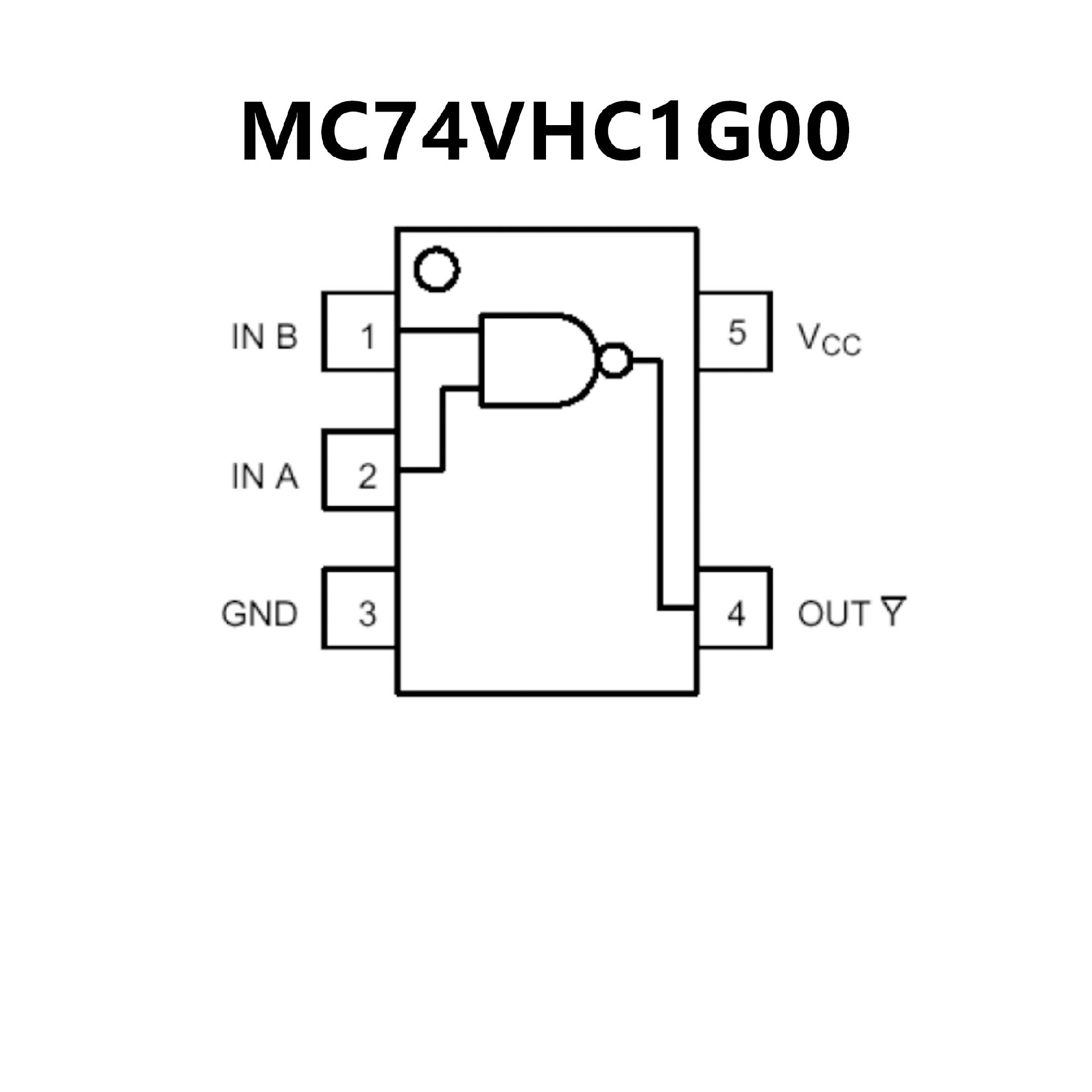

PIN CONFIGUTION
