Quad 2 input multiplexer,Replace 74LVC157AD
74LVC157XS16G
74LVC157XS16G.pdf
74LVC157XS16G.pdfFEATURES
? Wide Supply Voltage Range: 1.2V to 3.6V
? Inputs Accept Voltages up to 5V with 5V Logic
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TQFN-2.5×3.5-16L, SOIC-16 and TSSOP-16 Packages

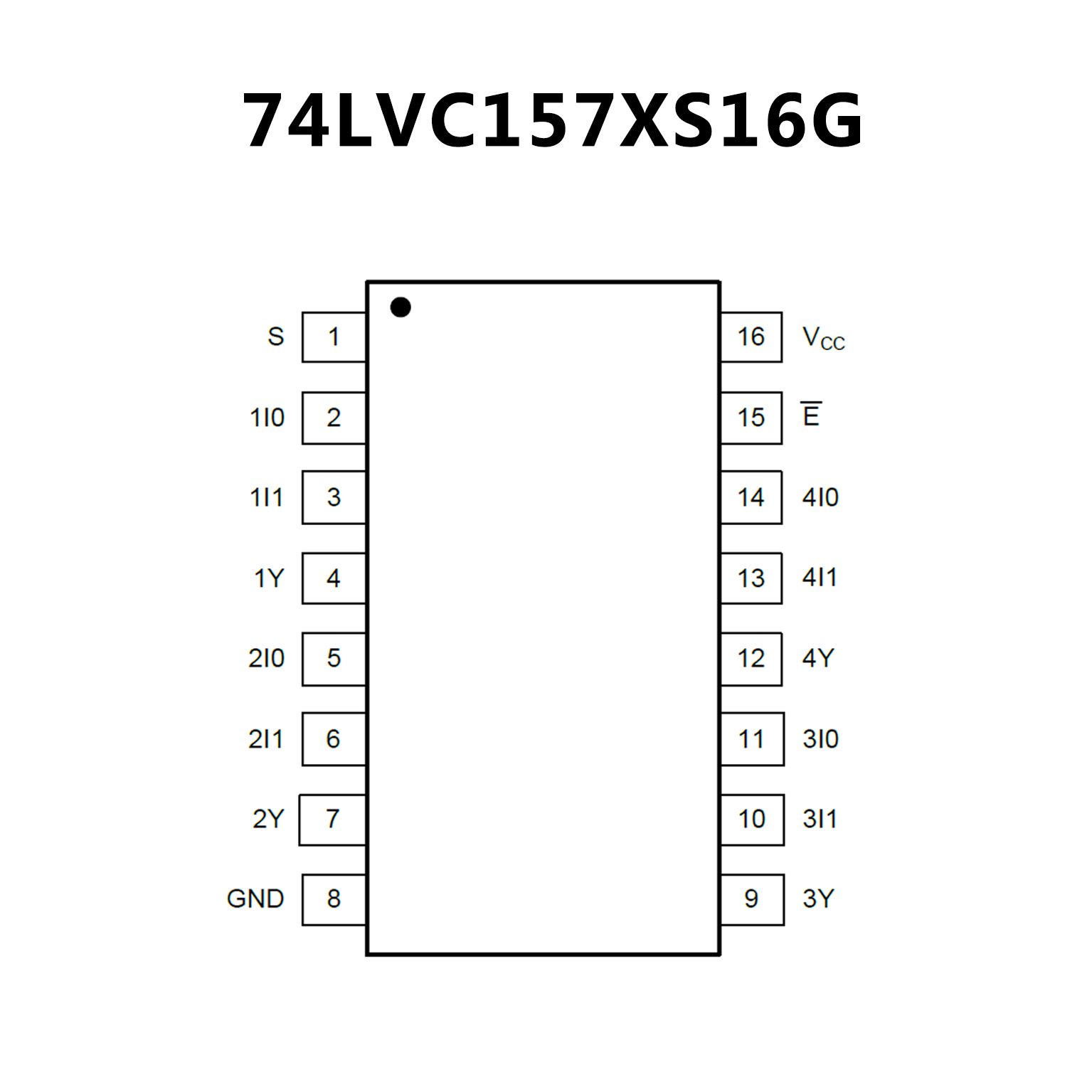

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Overvoltage tolerant inputs to 5.5 V
? Wide supply voltage range from 1.2 V to 3.6 V
? CMOS low power consumption
? Direct interface with TTL levels
? Complies with JEDEC standard:
JESD8-7A (1.65 V to 1.95 V)
? JESD8-5A (2.3 V to 2.7 V)
? JESD8-C/JESD36 (2.7 V to 3.6 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-B exceeds 200 V
? CDM JESD22-C101E exceeds 1000 V
? Multiple package options
? Specified from -40 °C to +85 °C and
-40 °C to +125 °C

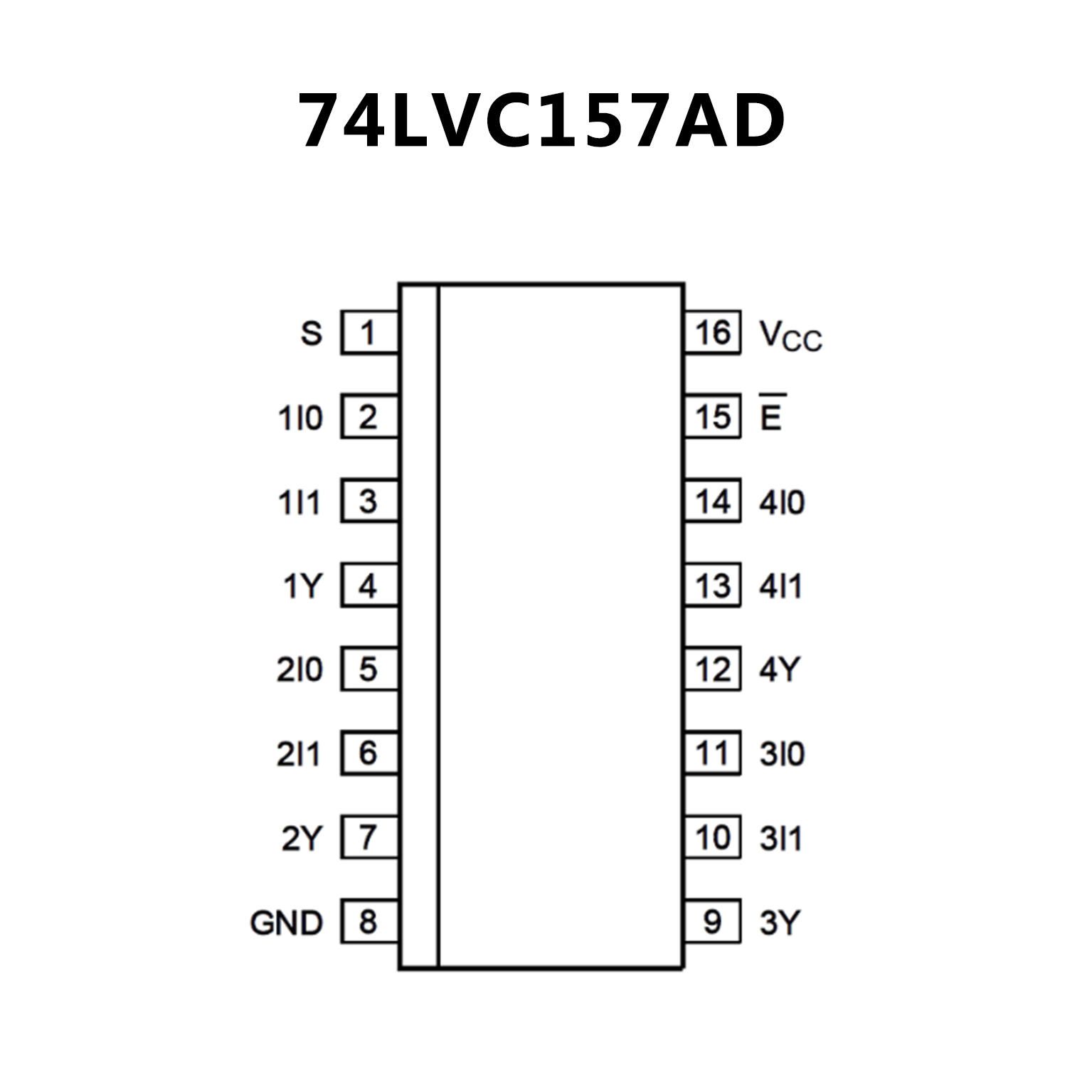

PIN CONFIGUTION
