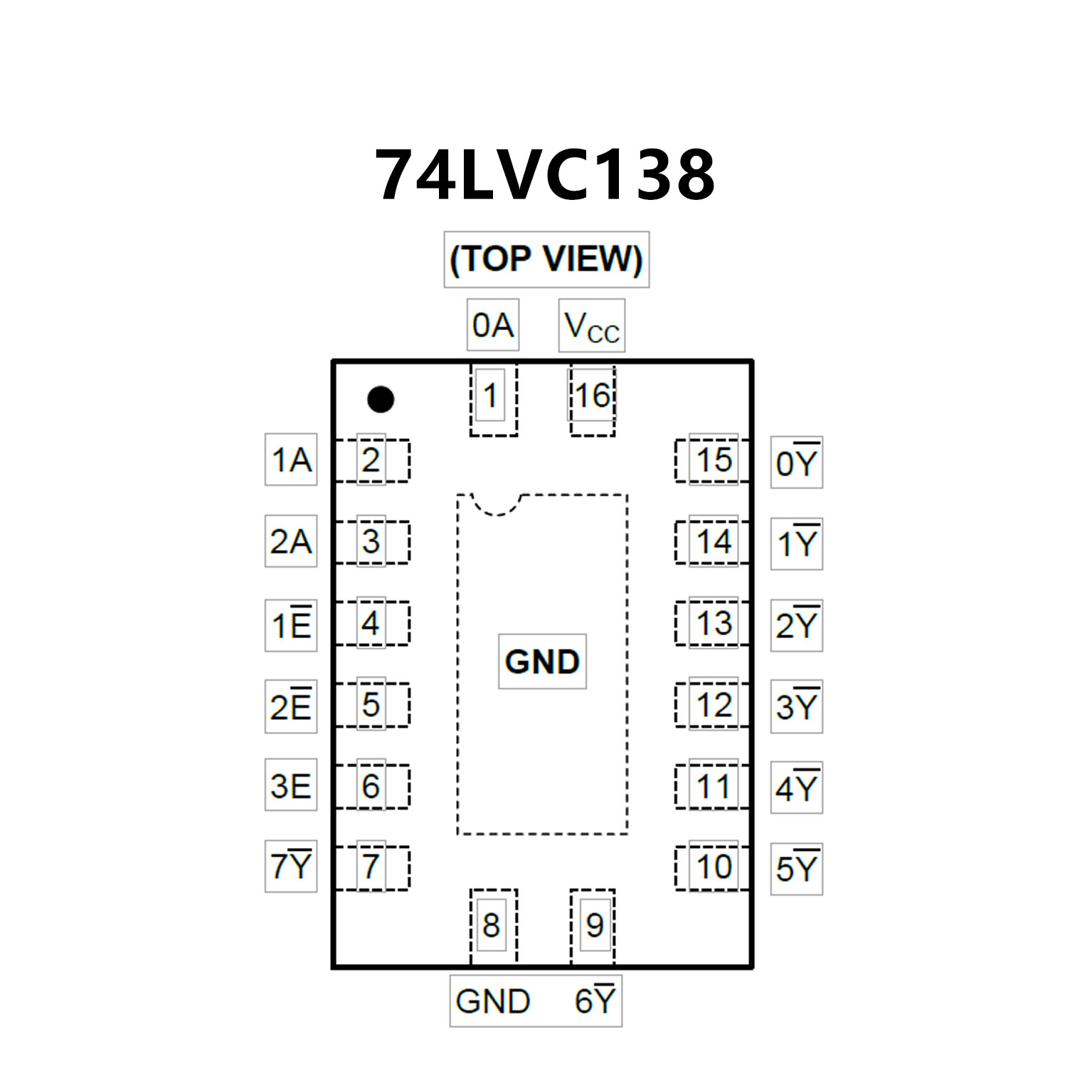

74LVC138.pdf? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Demultiplexing Capability
? Multiple Input Enable for Easy Expansion
? Ideal for Memory Chip Select Decoding
? Mutually Exclusive Outputs
? Output Drive Capability: 50Ω Transmission Lines
at +125℃
? -40℃ to +125℃ Operating Temperature Range
? Additionally Specified from -10℃ to +85℃ at VCC = 1.14V
? Available in a Green TQFN-2.5×3.5-16L Package
? Complies with JEDEC standard no. 7A

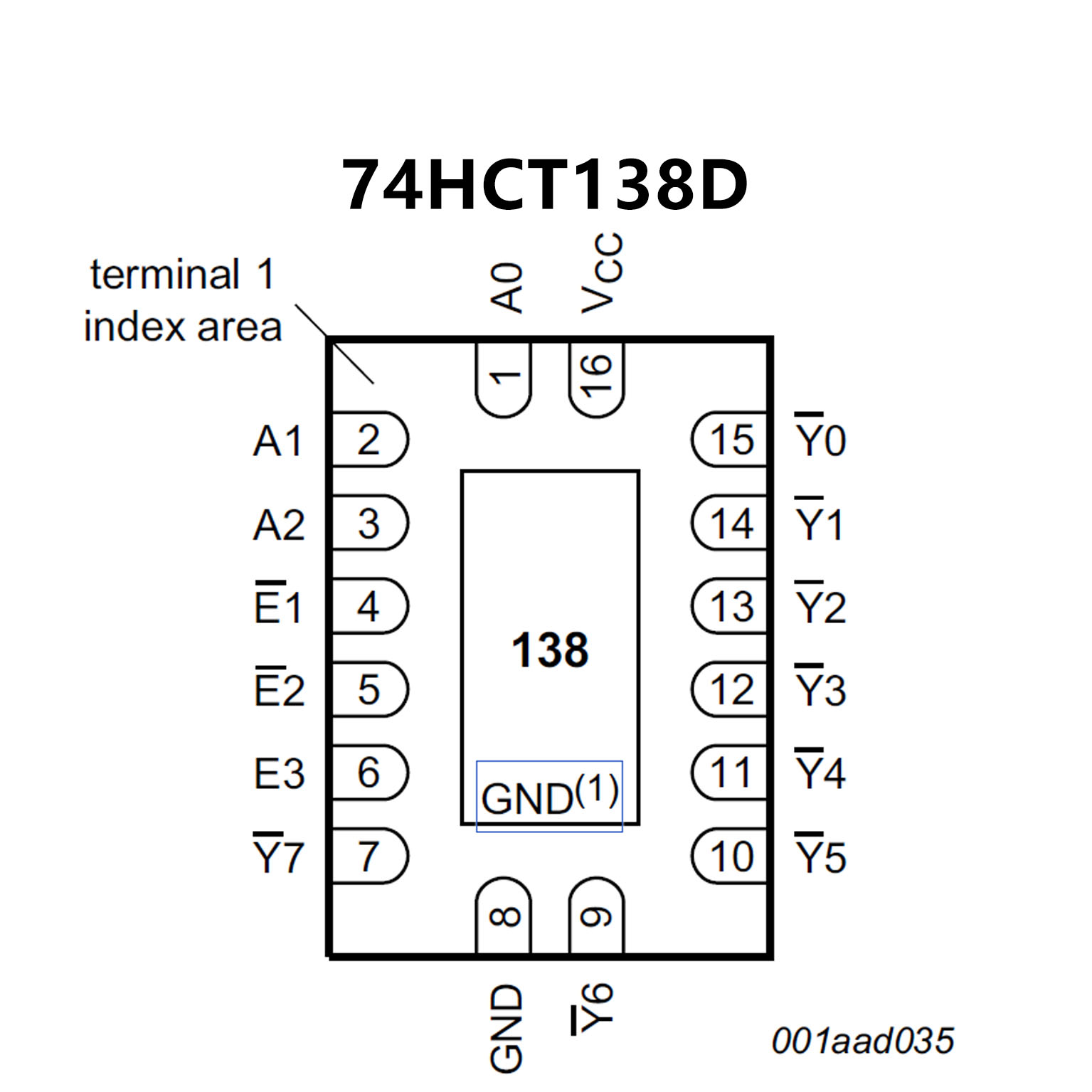

? Input levels:
For 74HC138: CMOS level
For 74HCT138: TTL level
? Demultiplexing capability
? Multiple input enable for easy expansion
? Ideal for memory chip select decoding
? Active LOW mutually exclusive outputs
? ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
? Multiple package options
? Specified from -40 ℃ to +85 ℃and from -40 ℃ to +125℃
