74LVC125A.pdf? Wide Supply Voltage Range: 1.65V to 3.6V
? Inputs Accept Voltages up to 5.5V
? Propagation Delay: 3.3ns (TYP) at VCC = 3.3V
? Output Ground Bounce VOLP (TYP) < 0.8V
at VCC = 3.3V and TA = +25℃
? Output VOH Undershoot VOHV (TYP) > 2V
at VCC = 3.3V and TA = +25℃
? 3-State Output
? Separate OE for All 4 Buffers
? Latch-up Performance Exceeds 250mA
? -40℃ to +125℃ Operating Temperature Range

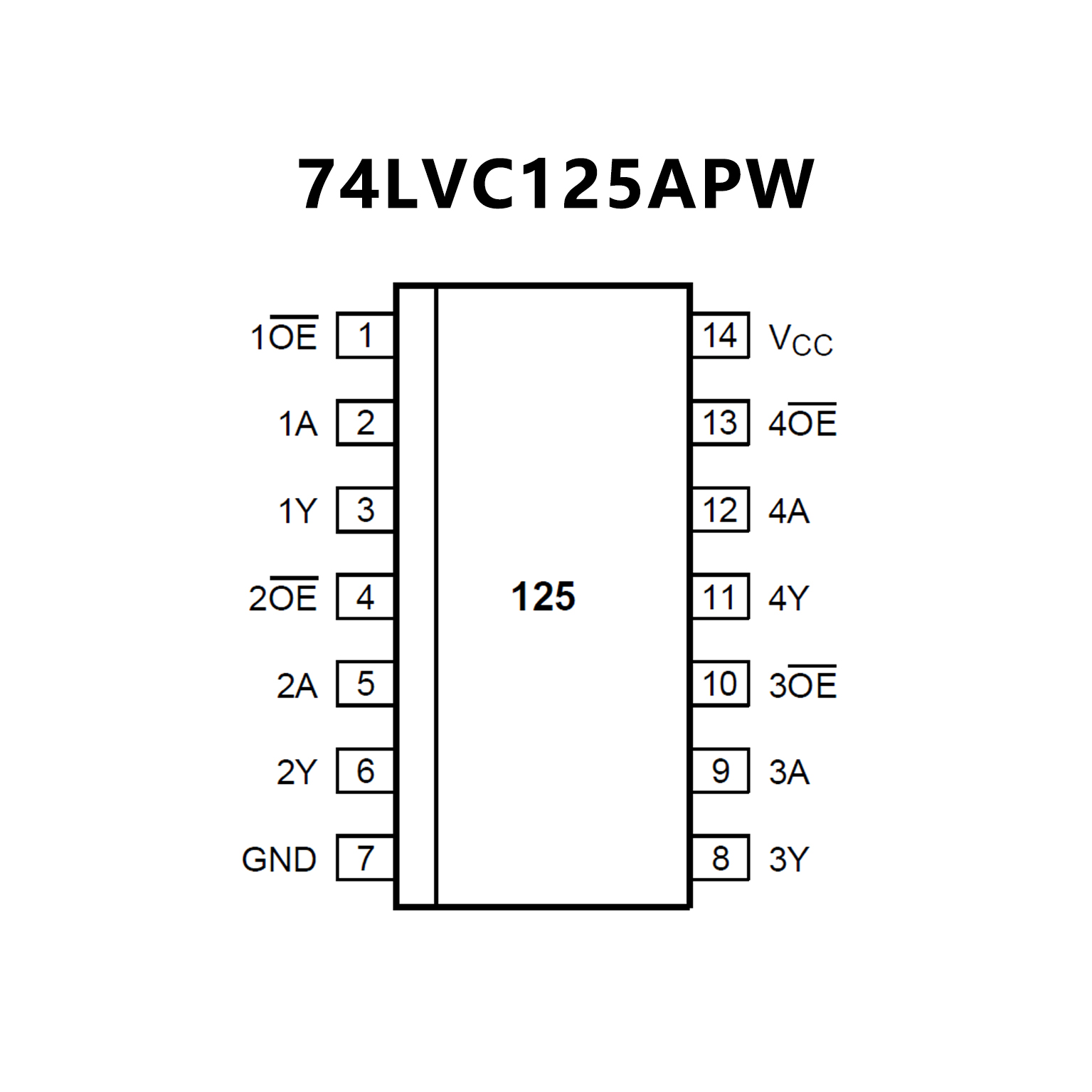

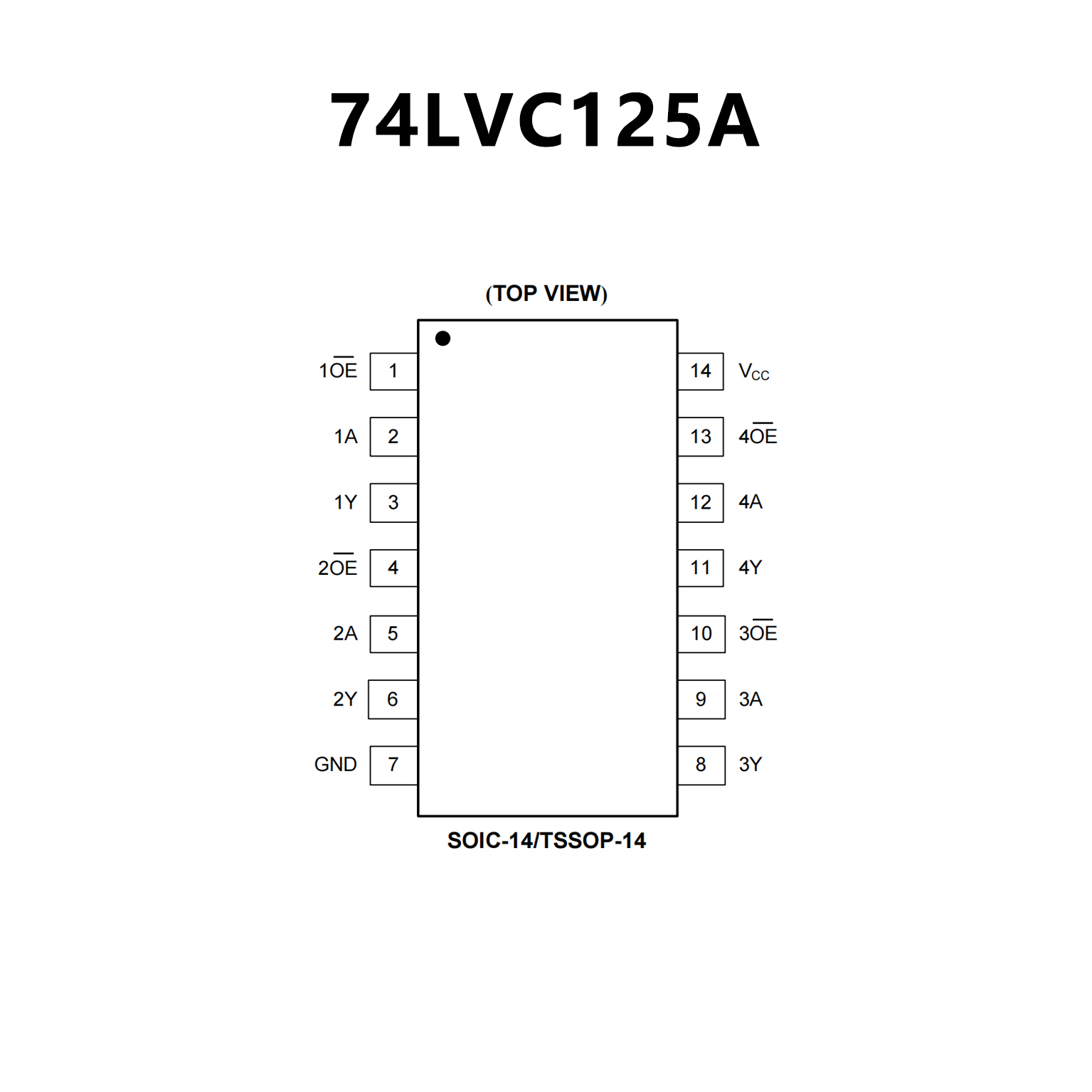

? Available in Green SOIC-14 and TSSOP-14
Packages
? Overvoltage tolerant inputs to 5.5 V
? Wide supply voltage range from 1.2 V to 3.6 V
? CMOS low power consumption
? Direct interface with TTL levels
? Complies with JEDEC standard:
? JESD8-7A (1.65 V to 1.95 V)
? JESD8-5A (2.3 V to 2.7 V)
? JESD8-C/JESD36 (2.7 V to 3.6 V)
? IOFF circuitry provides partial Power-down mode operation
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-B exceeds 200 V
? CDM JESD22-C101E exceeds 1000 V
? Multiple package options
? Specified from -40 °C to +85 °C and -40 °C to +125 °C
