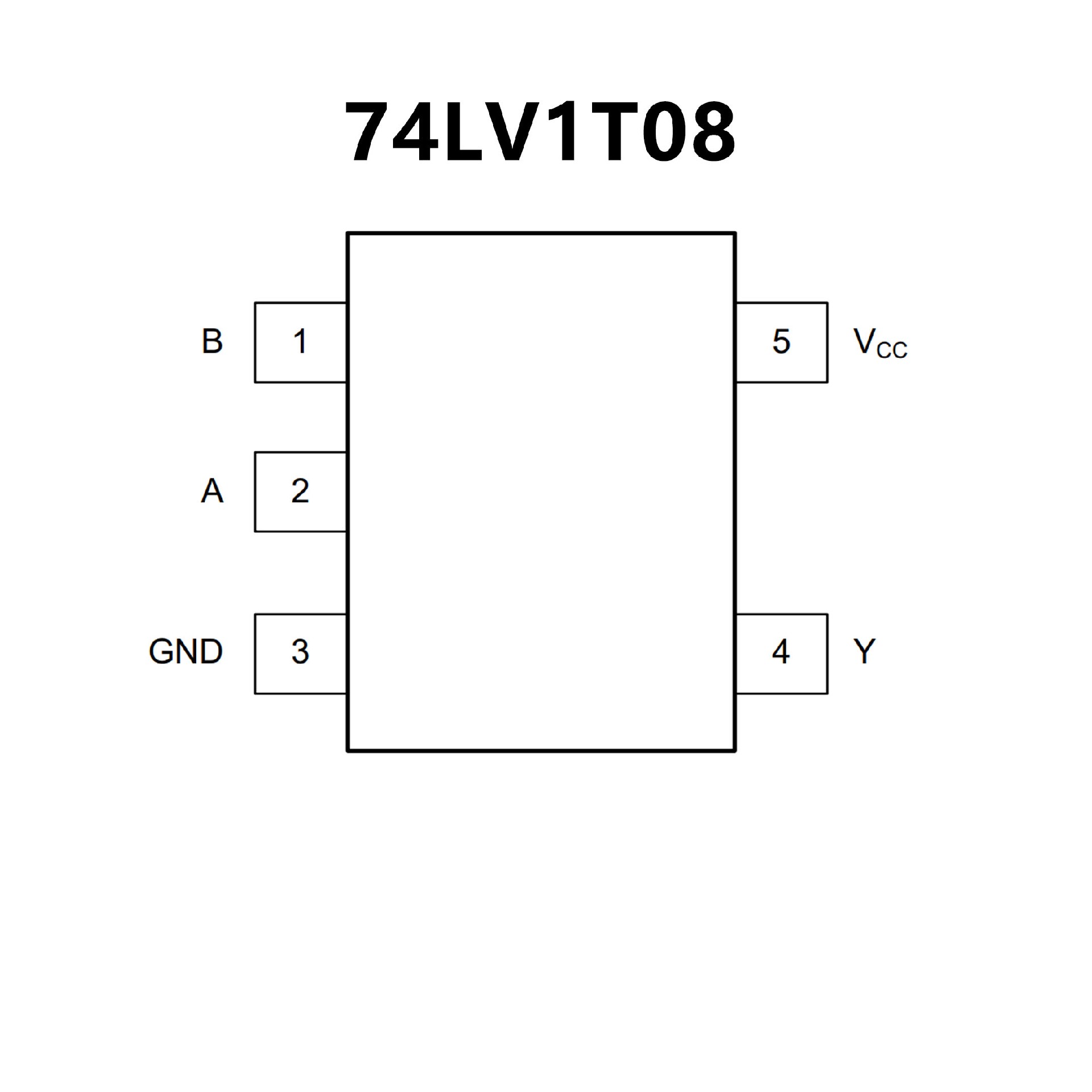

74LV1T08.pdf? Single Supply Voltage Translator at 1.8V,
2.5V,3.3V and 5.0V
? Up Translation:
1.2V to 1.8V at VCC = 1.8V
1.5V to 2.5V at VCC = 2.5V
1.8V to 3.3V at VCC = 3.3V
3.3V to 5.0V at VCC = 5.0V
? Down Translation:
3.3V to 1.8V at VCC= 1.8V
3.3V to 2.5V at VCC = 2.5V
5.0V to 3.3V at VCC = 3.3V
? 5V Tolerant Inputs
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package
? Space Saving SC?74A and SC?88A 5?Lead Package
? Ultra Small MicroPak? Leadless Package
? High Speed: tPD = 3.5 ns Typ
? Low Quiescent Power: ICC < 1μA
? Balanced Output Drive: 2 mA IOL, ?2 mA IOH
? Broad VCC Operating Range: 2 V – 6 V
? Balanced Propagation Delays
? Specified for 3 V Operation
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHSCompliant
