4-Bit Dual-SupplyTranslating Transceiver with ConfigurableVoltage Translation and 3-State Outputs, 74AVC4T245Q Replace CAXC4T245QRSVRQ1.
74AVC4T245Q
74AVC4T245Q.pdf
74AVC4T245Q.pdfFEATURES
? AEC-Q100 Qualified for Automotive
Applications Device Temperature Grade 1
TA = -40℃ to +125℃
? VCCA Supply Voltage Range: 0.8V to 3.6V
? VCCB Supply Voltage Range: 0.8V to 3.6V
? Inputs Accept Voltages up to 3.6V
? +12mA/-12mA Output CurrentData Rates:
380Mbps (≥ 1.8V to 3.3V Translation)
200Mbps (≥ 1.1V to 3.3V Translation)
200Mbps (≥ 1.1V to 2.5V Translation)
200Mbps (≥ 1.1V to 1.8V Translation)
100Mbps (≥ 1.1V to 1.2V Translation)
? Outputs in High-Impedance
State when VCCA or VCCB = 0V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-16 Package

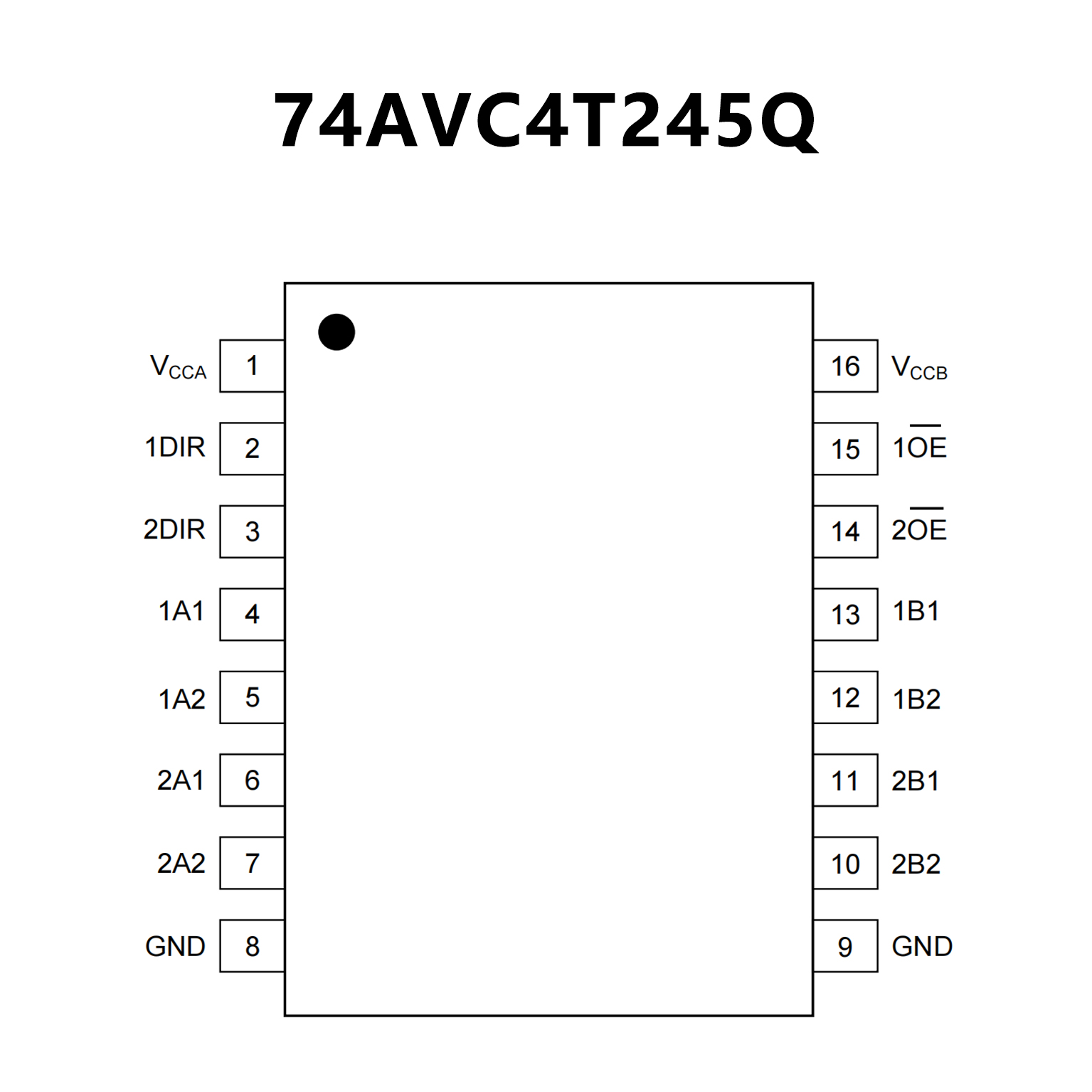

PIN CONFIGUTION
