2-bit dual supply translating transceiver with configurable voltage translation; 3-state, 74AVC2T245Q P2P 74AVC2T245GU-Q100.
74AVC2T245Q.pdf優勢替代
FEATURES
? Automotive product qualification in accordance with
AEC-Q100 (Grade 1)
? Specified from -40°C to +85°C and from -40°C to +125°C
? Wide supply voltage range:
? VCC(A): 0.8 V to 3.6 V
? VCC(B): 0.8 V to 3.6 V
? Complies with JEDEC standards:
? JESD8-12 (0.8 V to 1.3 V)
? JESD8-11 (0.9 V to 1.65 V)
? JESD8-7 (1.2 V to 1.95 V)
? JESD8-5 (1.8 V to 2.7 V)
? JESD8-B (2.7 V to 3.6 V)
? ESD protection:
? HBM JESD22-A114E Class 3B exceeds 8000V
? CDM JESD22-C101C exceeds 1000V
? Maximum data rates:
? 380 Mbit/s (≥ 1.8 V to 3.3 V translation)
? 200 Mbit/s (≥ 1.1 V to 3.3 V translation)
? 200 Mbit/s (≥ 1.1 V to 2.5 V translation)
? 200 Mbit/s (≥ 1.1 V to 1.8 V translation)
? 150 Mbit/s (≥ 1.1 V to 1.5 V translation)
? 100 Mbit/s (≥ 1.1 V to 1.2 V translation)
? Suspend mode
? Latch-up performance exceeds 100mA per JESD 78 Class II
? Inputs accept voltages up to 3.6V
? IOFF circuitry provides partial Power-down mode operation

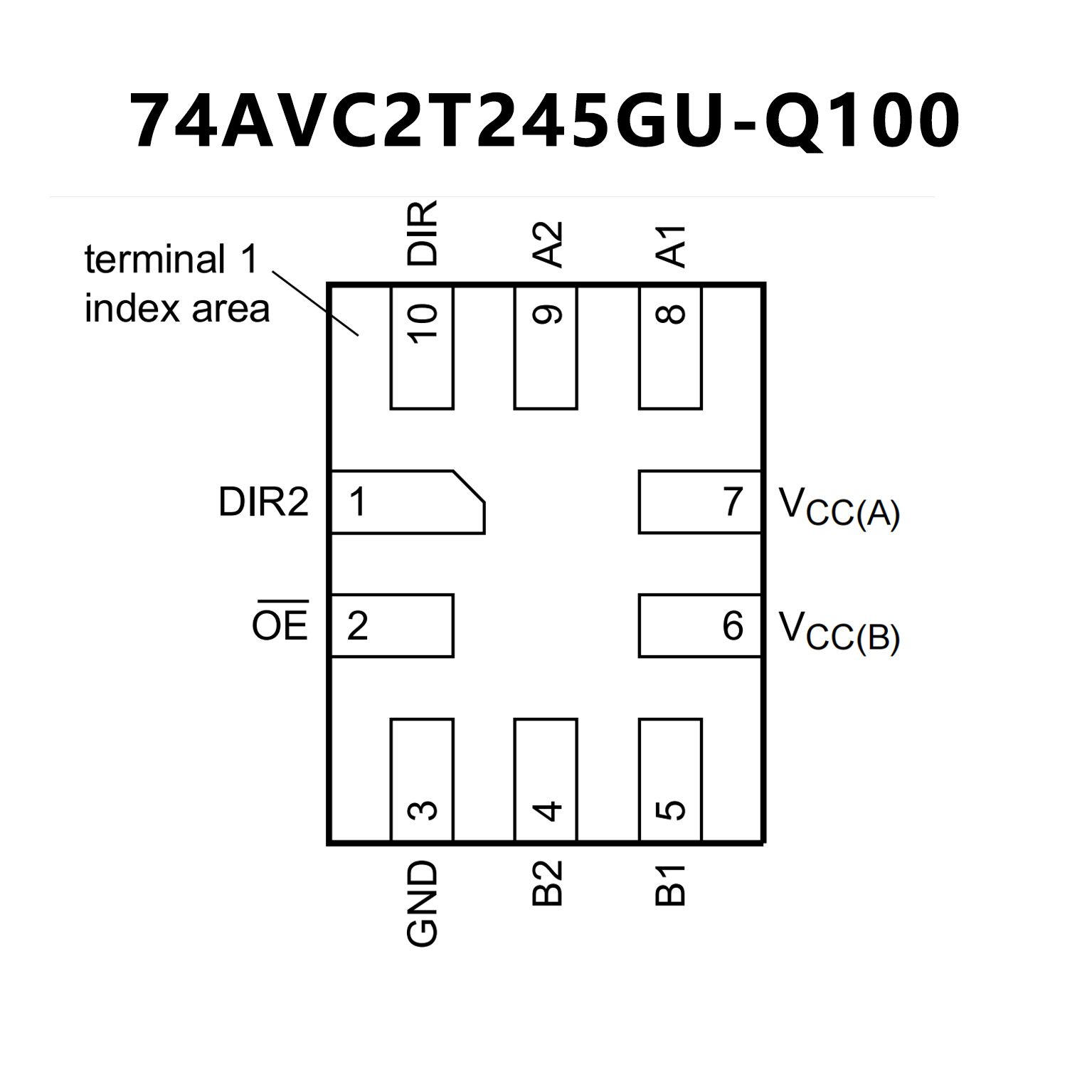

PIN CONFIGUTION
