16-Bit Dual-Supply Translating Transceiver with 3-State Outputs,74ALVC164245 Replace SN74ALVC164245.
74ALVC164245
74ALVC164245.pdf
74ALVC164245.pdfFEATURES
? 5V Tolerant Inputs/Outputs for Interfacing with5V Logic
? Wide Supply Voltage Range:
3V VCCA: 1.5V to 3.6V
5V VCCB: 1.5V to 5.5V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Control Inputs Voltage Range from 2.7V to 5.5V
? Inputs Accept Voltages up to 5.5V
? High-Impedance Outputs when VCCA or VCCB = 0V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-48 Package

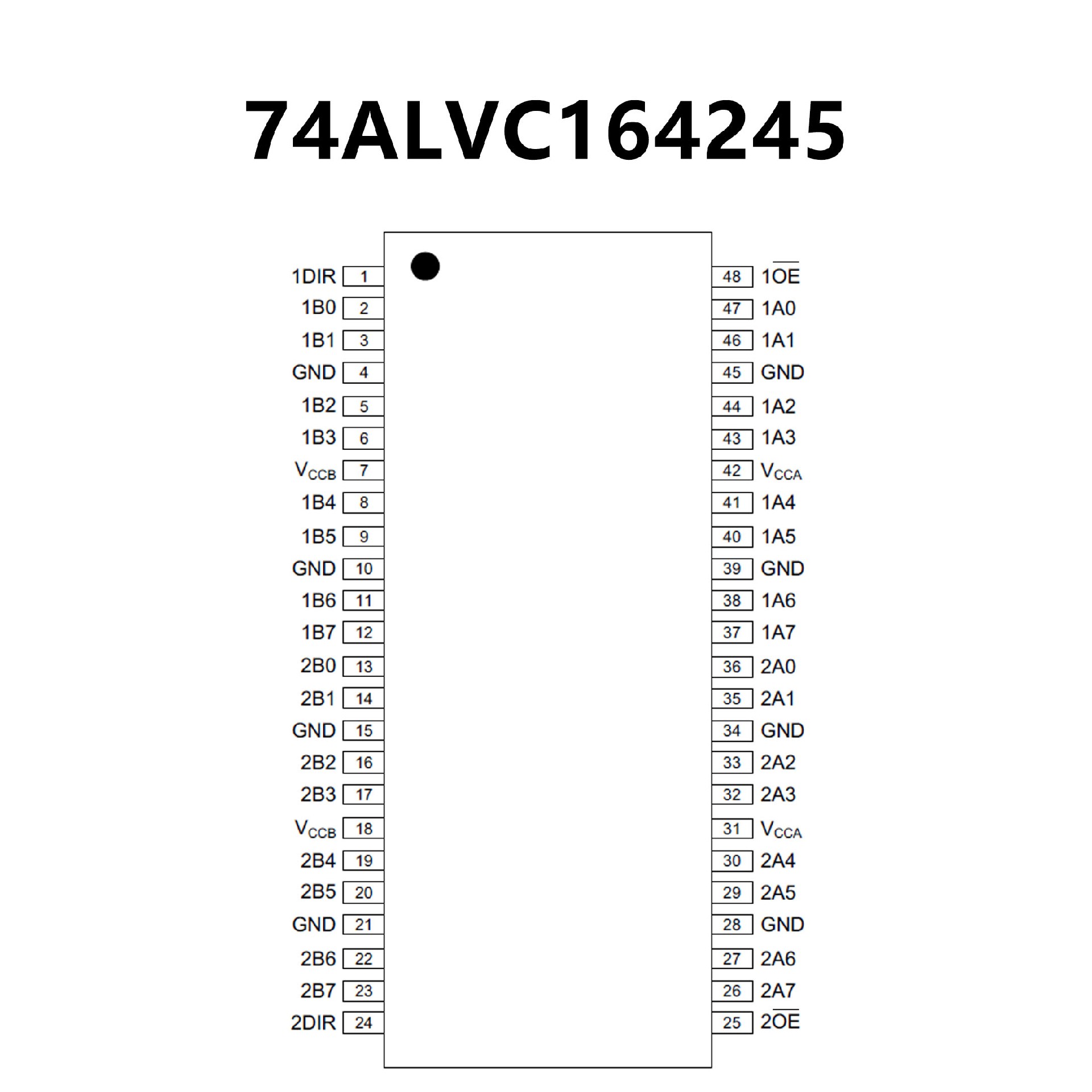

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Member of the Texas Instruments Widebus?
Family
? Maximum tpd of 5.8 ns at 3.3 V
? ±24-mA Output Drive at 3.3 V
? Control Inputs VIH/VIL Levels Are Referenced to
VCCA Voltage
? Latch-Up Performance Exceeds 250 mA Per
JESD 17

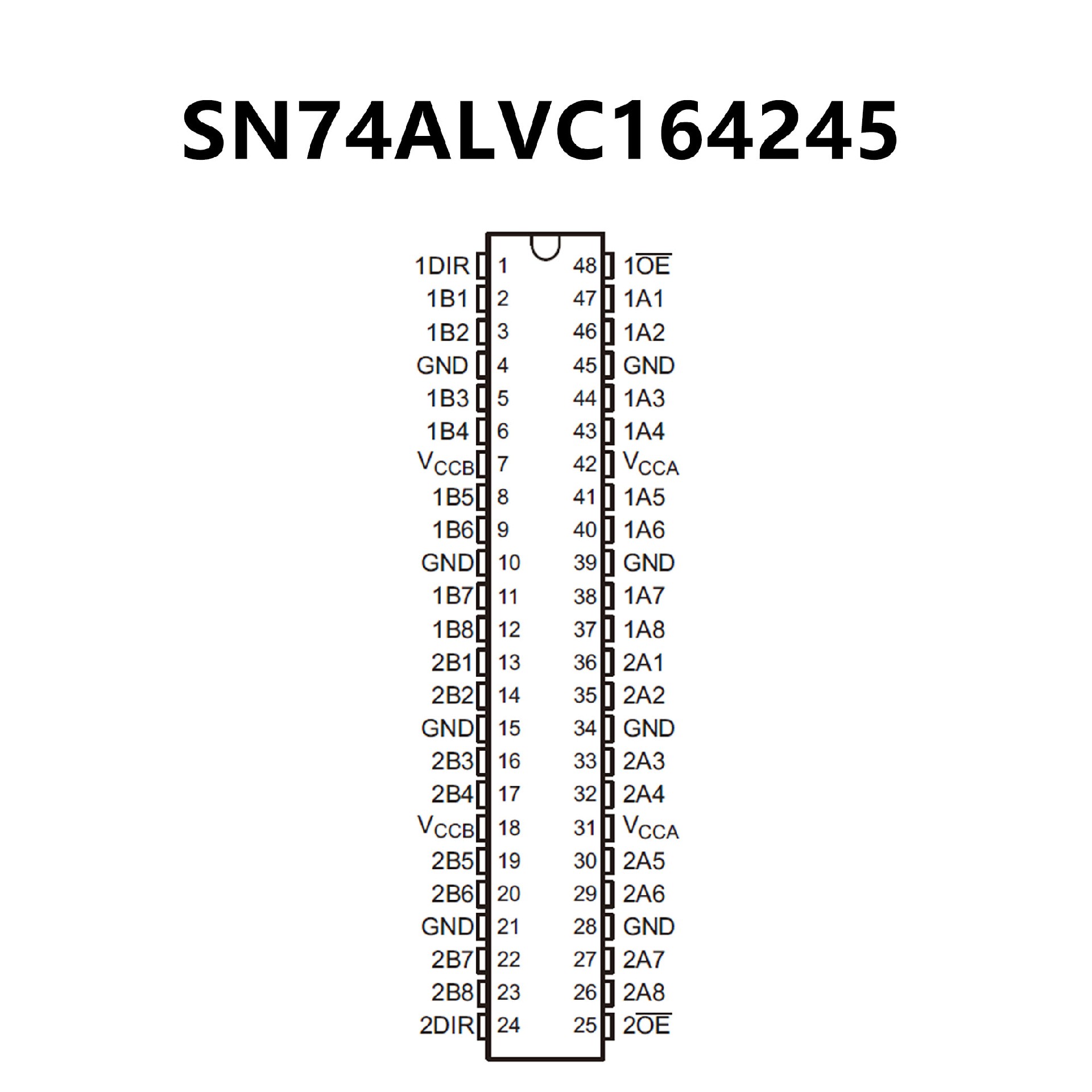

PIN CONFIGUTION
