Hex Inverter with Schmitt Trigger Inputs,74AHC14XS14G Replace TC74VHC14F.
74AHC14XS14G
74AHC14XS14G.pdf
74AHC14XS14G.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher than the SupplyVoltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

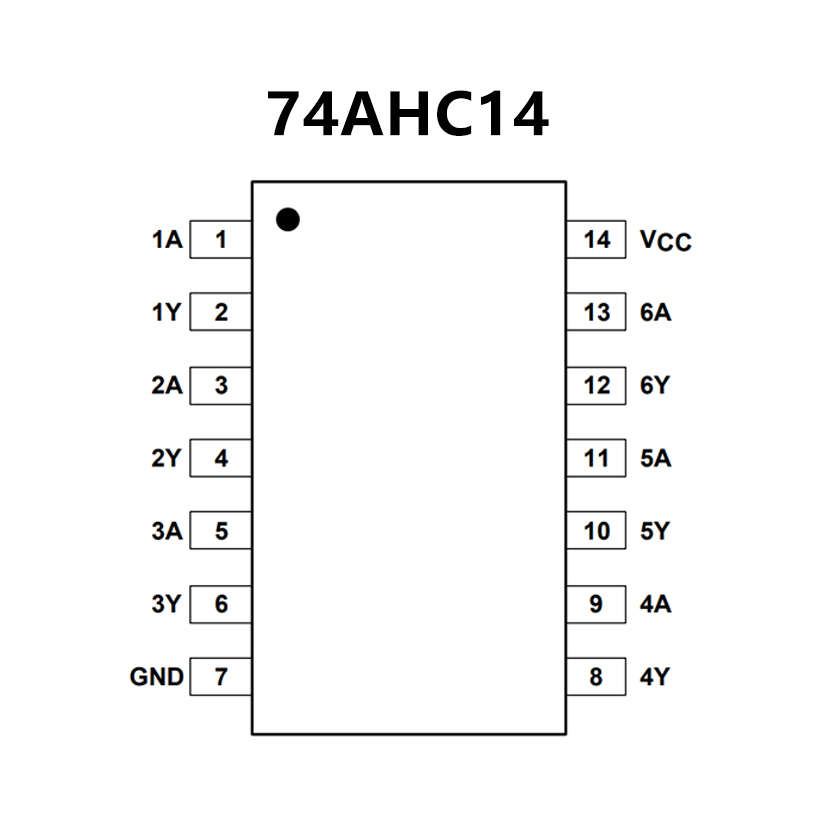

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? High speed: tpd = 5.5 ns (typ.) at VCC = 5 V
? Low power dissipation: ICC = 2 μA (max) at Ta = 25°C
? Power down protection is provided on all inputs.
? Balanced propagation delays: tpLH ?～ tpHL
? Wide operating voltage range: VCC (opr) = 2 V to 5.5 V
? Low noise: VOLP = 0.8 V (max)
? Pin and function compatible with 74ALS14

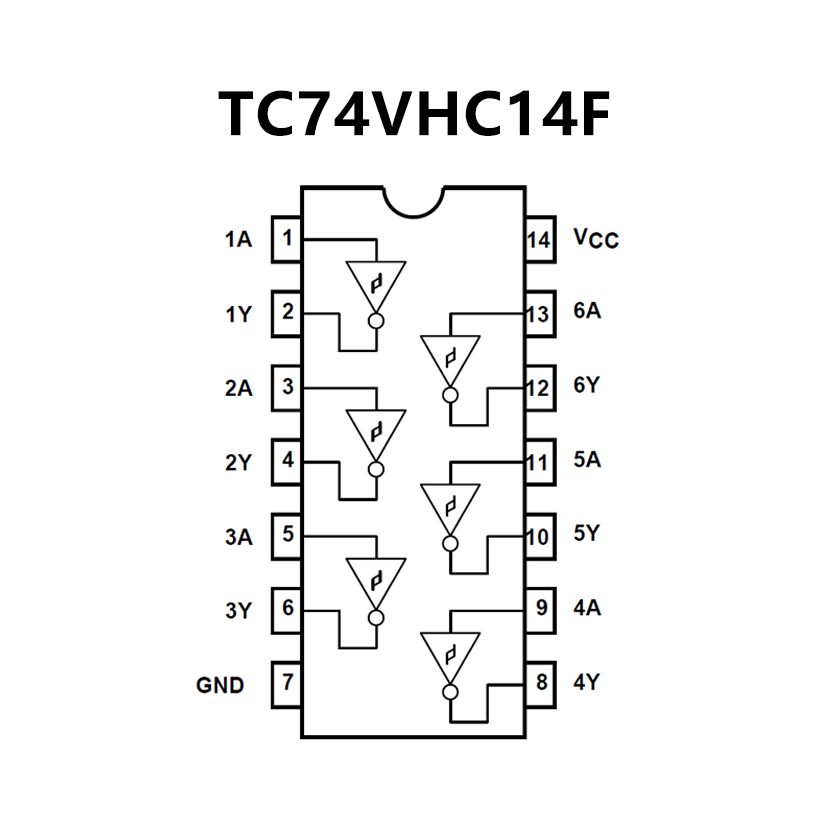

PIN CONFIGUTION
